Definition of galvanized coil
Galvanized Steel Coils are produced through a process of metal coating which involves passing could rolled coils through a kettle containing molten zinc. This process ensures adhesion of zinc to the surface of the steel sheet. The Zinc Layer provides excellent corrosion resistance and prolong service life.
Galvanized coil, a thin steel sheet that is dipped into a molten zinc bath to adhere a layer of zinc to its surface. It is mainly produced by the continuous galvanizing process, in which rolls of steel sheet are continuously dipped in a bath of molten zinc to make galvanized steel sheet; alloyed galvanized steel sheet. This steel sheet is also manufactured by the hot dipping method, but immediately after leaving the bath, it is heated to about 500°C to produce an alloyed coating of zinc and iron. This galvanized coil has good paint adhesion and weldability.
Hot dipped galvanized products are widely used in hosehold appliances, transort, container manufacturing, roofing, base material for pre-painting, ducting and other construction related applications.
|
Technical Standard |
EN10147, EN10142, DIN 17162, JIS G3302, ASTM A653 |
|
Steel Grade |
Dx51D, Dx52D, Dx53D, DX54D, S220GD, S250GD, S280GD, S350GD, S350GD, S550GD; SGCC, SGHC, SGCH, SGH340, SGH400, SGH440, SGH490, SGH540, SGCD1, SGCD2, SGCD3, SGC340, SGC340 , SGC490, SGC570; SQ CR22 (230), SQ CR22 (255), SQ CR40 (275), SQ CR50 (340), SQ CR80(550), CQ, FS, DDS, EDDS, SQ CR33 (230), SQ CR37 (255), SQCR40 (275), SQ CR50 (340), SQ CR80 (550); or Customer’s Requirement |
|
Type |
Coil/Sheet/Plate/Strip |
|
Thickness |
0.12-6.00mm,or customer's requirement |
|
Width |
600mm-1500mm, according to customer's requirement |
|
Type of Coating |
Hot Dipped Galvanized Steel(HDGI) |
|
Zinc Coating |
30-275g/m2 |
|
Surface Treatment |
Passivation(C), Oiling(O), Lacquer sealing(L), Phosphating(P), Untreated(U) |
|
Surface Structure |
Normal spangle coating(NS), minimized spangle coating(MS), spangle-free(FS) |
|
Quality |
Approved by SGS,ISO |
|
Coil Weight |
3-20 metric ton per coil |
|
Package |
Water proof paper is inner packing,galvanized steel or coated steel sheet is outer packing , side guard plate,then wrapped by seven steel belt.or according to customer's requirement |
|
Export market |
Europe, Africa, Central Asia, Southeast Asia, Middle East, South America, North America, etc |
1 . Typische Anwendungen.
1)Exterior building products
2)Piping system
3)HVAC products
4)Flashing
5)Electrical products such as electrical boxes
6)Roofing
7)Door
8)Casement windows
9)Auto parts
10)Household appliances
11)Commercial and residential steel frame
12)Parking lot
13)truss plate
14)Metal building pur
15)Other products that need corrosion resistant materials.

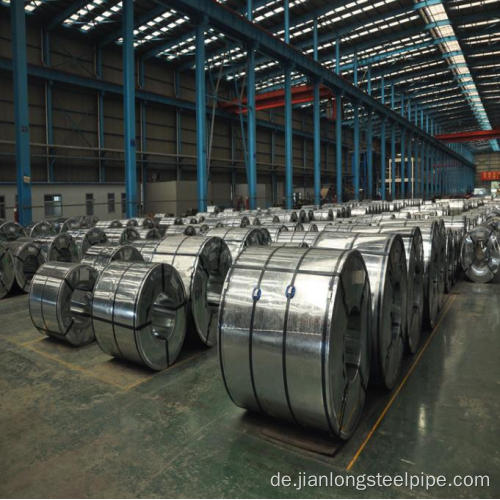

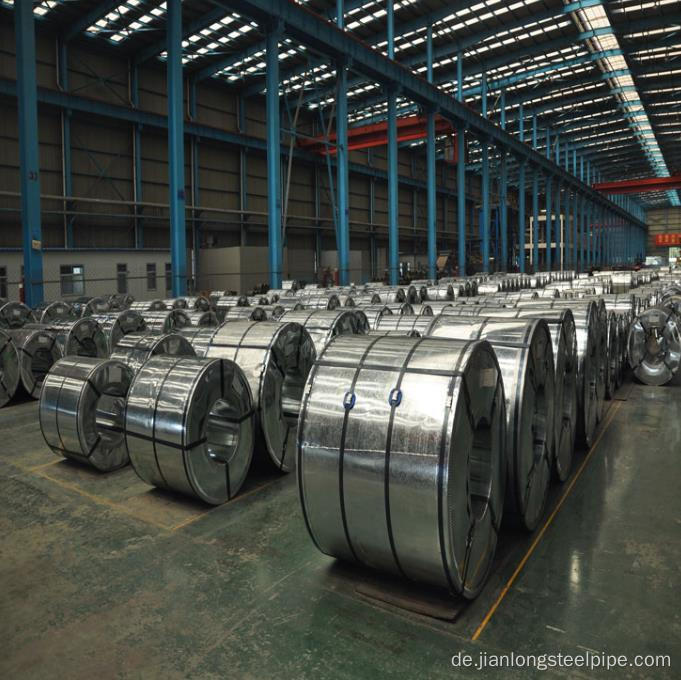

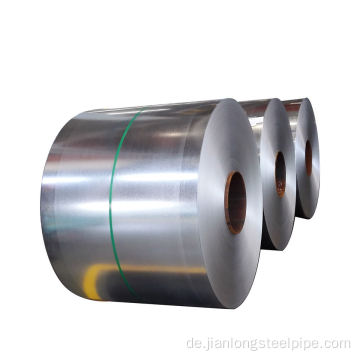

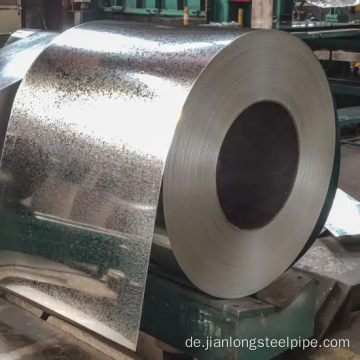

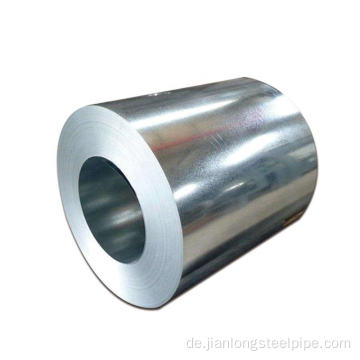

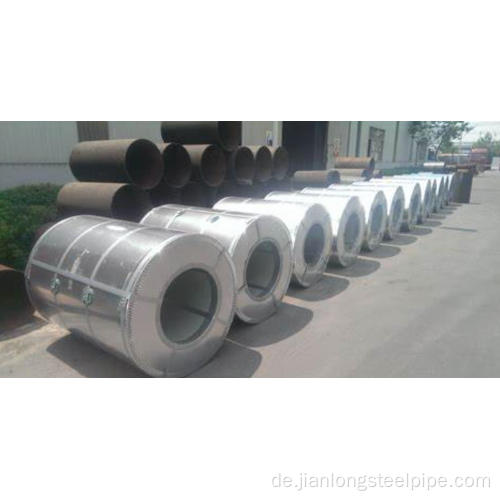

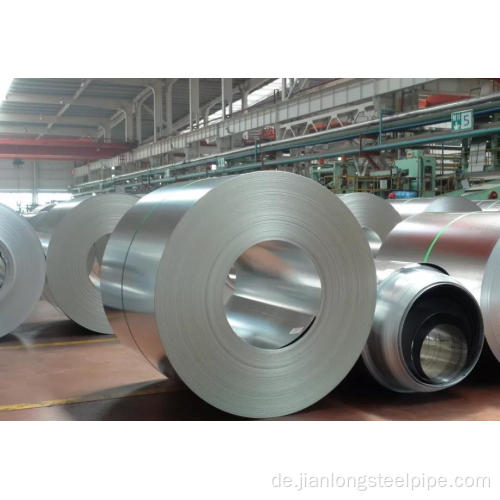

Product Images
FAQ
1. Warum wählen Sie uns?
Unser Unternehmen war 12 Jahre. Wir kontrollieren die Qualität der Produkte sehr streng, es gibt besondere Personen für die Qualität.
Wenn Sie einen niedrigeren Preis von einem anderen Lieferanten erhalten haben, zahlen wir den Kunden zweimal zurück, um den höheren Preis zu erhalten.
2.Wie lange ist Ihre Lieferzeit?
Gemäß der Menge.GEURGEN IN 2-7 TAGEN, wenn sie auf Lager sind, und 15-20 Tage, falls nicht auf Lager.
3.Was sind Ihre Zahlungsbedingungen?
A: Mit T/T 30% im Voraus und 70% vor der Lieferung.
B: 100% l/c bei Sicht.
C: Mit T/T 30% im Voraus und 70% l/c bei Sicht.
4. Haben Sie Proben bereitgestellt? Ist es frei?
Ja, wir bieten die Probe kostenlos an, zahlen aber nicht die Kosten für Fracht.
5.Was, wenn der Kunde nicht zufrieden ist?
Wenn es ein Problem mit dem Produkt gibt, übernehmen wir die volle Verantwortung.
Wenn der Transportprozess ein Problem vorliegt, helfen wir Ihnen, es zu lösen.
